Pin Replacement for TI2005-831

Replacing Power and Control Pin:

Step 1

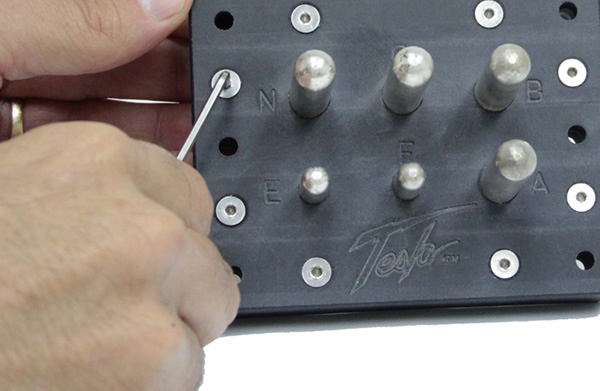

STEP 1: Unscrew and set aside the eight Flat Head Socket Cap Screws (TI2100-383) using a hex key turning counterclockwise.

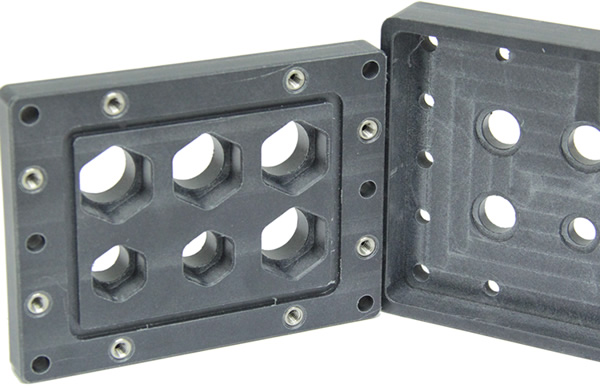

STEP 2: Separate the top by sliding it off and away from the pins.

Step 2

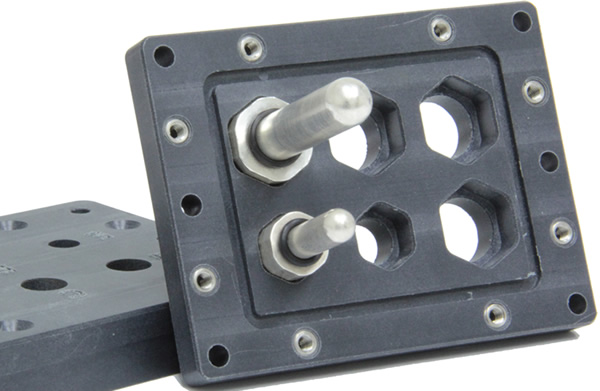

STEP 3: Remove the pins that you will be replacing.

Step 3

STEP 4: Apply the Silicone Compound (TI6000-367) to the male threads of the replacement pins.

STEP 5: Put the replacements, nut side, into the base of the receptacle.

STEP 6: Making sure the holes match up with the pin size, slide the top piece over the pins. The fit is snug.

STEP 7: Screw the Flat Head Socket Cap Screws back into the top. Both pieces together should be flush on the bottom.
