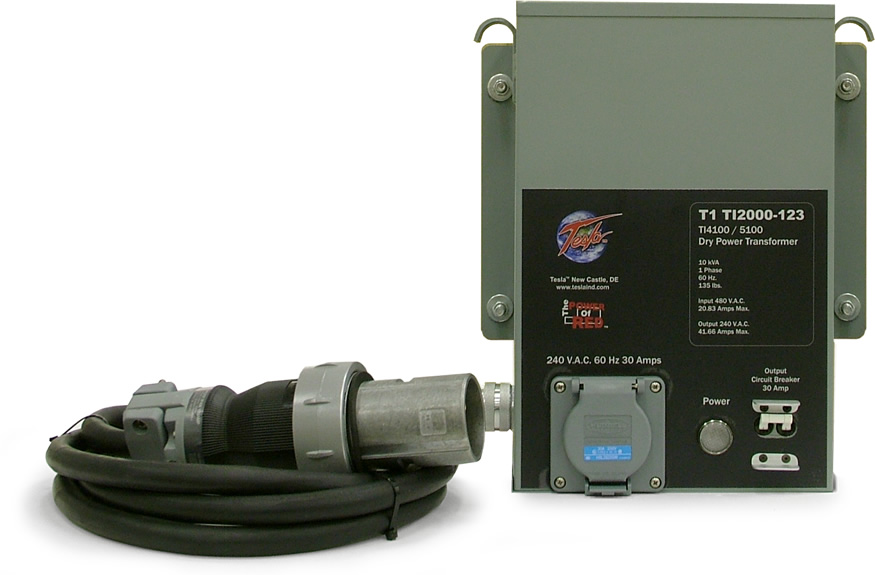

TI2000-123 Dry Power Transformer

TI2000-123 Dry Power Transformer

The T1 TI2000-123 Dry Power Transformer can be used with the TI4100 and TI5100 GPUs. "Dry" means it is cooled by normal air ventilation and does not require a liquid such as oil or silicone to cool the electrical core and coils. The transformer case is ventilated to allow air to flow and cool the coils.

  • 10 kVA, single phase, 60 Hz.
  • Input: 480 Vac 60 Hz 20.83 amps max
  • Output: 240 Vac 60 Hz 41.66 amps max
  • Used with the TI4100 and TI5100 GPUs.
  • Size: 10.24" L x 13.5" W x 16.19" H
  • 260 mm x 342.9 mm x 411.4 mm
  • Weight: 135 lbs. (61.23 kg).
