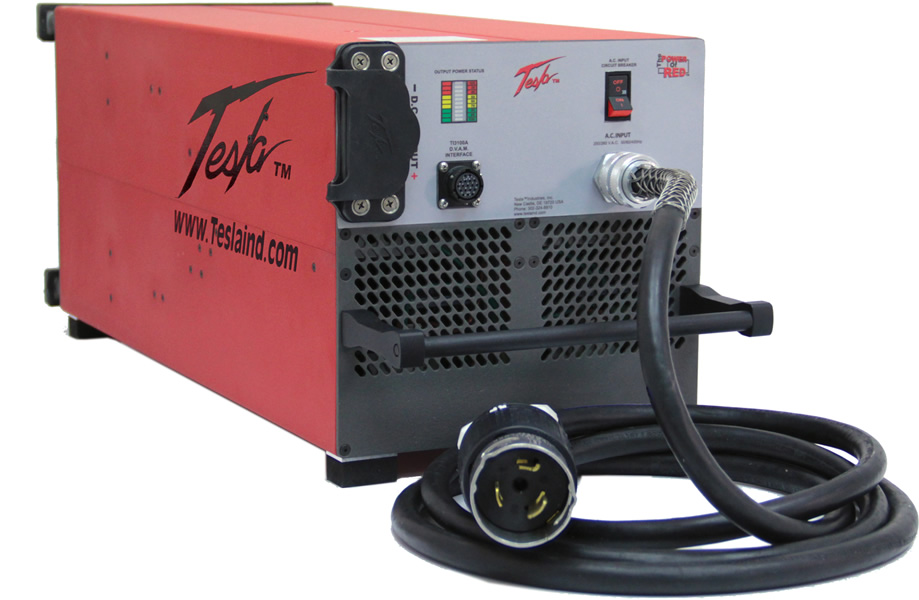

TI200-PFC

TI200-PFC
  • Perfect for testing and troubleshooting (avionics, TMDE, and electronics).
  • Safe, easy, maintenance-free operation.
  • 0.999% power factor.
  • <2% THD (Total Harmonic Distortion).
  • One person can maneuver and operate the unit.
  • Thermal/Overload protection.
  • Built-in Power Output Indicator.
  • Will charge and condition batteries when unit is left connected to vehicle or aircraft (ac power required).
  • NOTE: Unit is not rated for engine starting. It is to be used for ground maintenance only.

TI200-PFC Specifications

DC Output: 200 amps continuous @ 28.5 Vdc (when plugged into ac power)
AC Input: Operates from Single Phase 200-260 Vac / 40 Hz - 450 Hz
33.5 amps @ 208 Vac - 6968 Watts
50 amp Twist-Lock Plug (50 amp service required)
Dimensions: 27.61" L x 10.4" W x 10.56" H
701.3 mm x 264.2 mm x 268.25 mm
Weight: 58 lbs (26.4 kg)
Warranty: 2 Years (3 Year Optional)

Included

  • TI2007-208 8ft. DC Aviation Cable Assembly OR
  • TI2007-315 15ft. DC NATO Cable Assembly OR
  • TI2007-515 15ft. DC Cable with Alligator Clips (for maintenance & troubleshooting only
    AND
  • TI25000-058 (CS8265) 25ft. Hardwired Single Phase Plug AC Line Cord

TI200-PFC Accessories

Dolly
TI7000-116
Dolly

Tesla™ DC Power Supply

Photo Gallery

TI200-PFC TI200-PFC TI200-PFC TI200-PFC
