Power Anytime, Anywhere

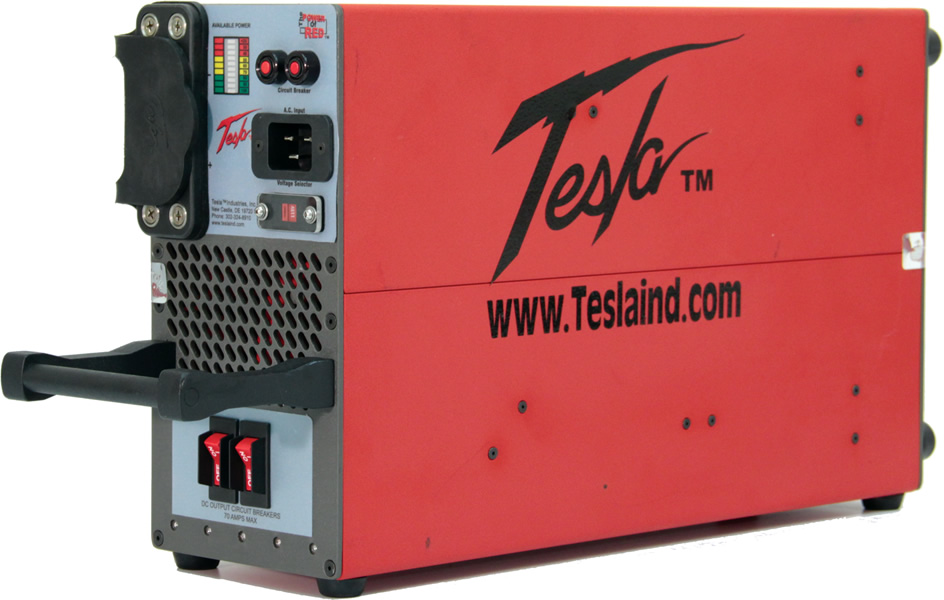

TI50A DC Power Supply

TI50A DC Power Supply

NSN: 6130016180204

  • Ideal for hangars, FOBs, motor pools, and deployments.
  • One person can easily maneuver and operate the unit.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • Operates with circuit breakers, therefore eliminating the need to replace blown fuses.
  • Safe for flight and travel.
  • NOTE: Unit is not rated for engine starting. It is to be used for ground maintenance only.

TI50A DC Power Supply Specifications

DC Output: 50 amps continuous @ 28.5 Vdc (when plugged into ac power)
AC Input: Operates from Single Phase 100-260 Vac, 50/60 Hz
20 amps @ 120 Vac - 2400 Watts
10 amps @ 240 Vac - 2400 Watts
Dimensions: 20.61" L x 5.2" W x 10.56" H
523.49 mm x 132.08 mm x 268.25 mm
Weight: 15.85 lbs (7.18 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Code:TI50A / NSN:6130-01-618-0204


TI50A / NSN: 6130016180204

Tesla™ DC Power Supply

Photo Gallery

TI50A DC Power Supply TI50A DC Power Supply TI50A DC Power Supply TI50A DC Power Supply
