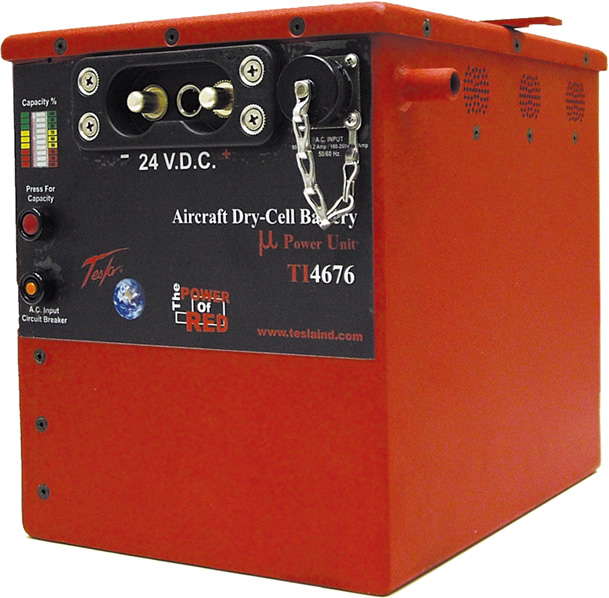

TI4676 MPU-24

NSN: 6140014675710

TI4676 MPU-24
  • Currently being flown in the UH-1, S-61, Falcon 200, AH-1, and the Dauphin.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Non-hazardous, dry-cell technology with no risk of thermal runaway.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TI4676 MPU-24 Specifications

DC Output: 1500 peak starting amps
10 amps continuous @ 28.5 Vdc (when plugged into ac power)
33 amp hours (797 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 45-450 Hz
5.5 amps @ single phase 120 Vac
2.75 amps @ single phase 240 Vac
Recharging Rate: 143 minutes (from full discharge) @ 25°C
Dimensions: 10.85" L x 9.68" W x 9.43" H
275.6 mm x 245.87 mm x 239.52 mm
Weight: 53 lbs (24 kg)
Warranty: 3 Years

Alternate NSN Code: TI4676 MPU-24 / NSN: 6140-01-467-5710
