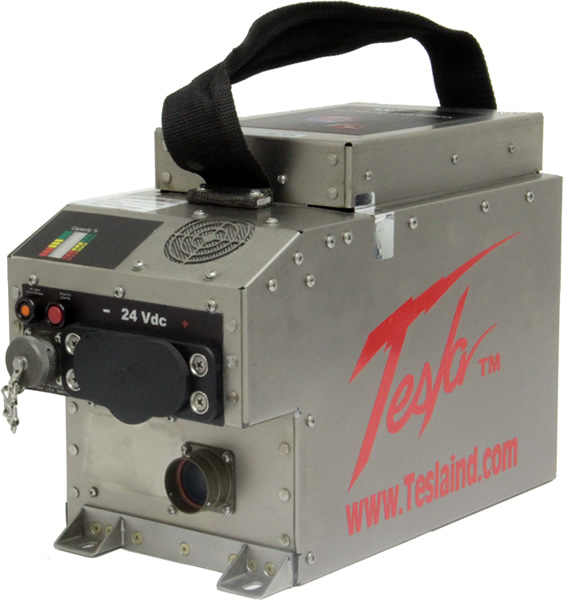

TI58D MPU-24

NSN: 6130015467470

TI58D MPU-24
  • Specifically designed to fit the OH-58D Kiowa Warrior Helicopter, additionally being used as a power supply for the M134 Dillon Minigun.
  • Complete battery system that incorporates patented power cell technology with an intelligent charging system and ac-dc converter.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • More power than comparable NiCds.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Non-hazardous, dry-cell technology with no risk of thermal runaway.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TI58D MPU-24 Specifications

DC Output: 1500 peak starting amps
10 amps continuous @ 28.5 Vdc (when plugged into ac power)
33 amp hours (797 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 45-450 Hz
5.5 amps @ single phase 120 Vac
2.75 amps @ single phase 240 Vac
Recharging Rate: 143 minutes (from full discharge) @ 25°C
Dimensions: 14.1" L x 6.7" W x 9.1" H
358.1 mm x 170.2 mm x 231.1 mm
Weight: 52 lbs (23.58 kg)
Warranty: 3 Years

Alternate NSN Code: TI58D MPU-24 / NSN: 6130-01-546-7470


Alternate Configuation

TI58D-R17 MPU-24 includes

  • TI2000-271 Dummy Receptacle - PICT
