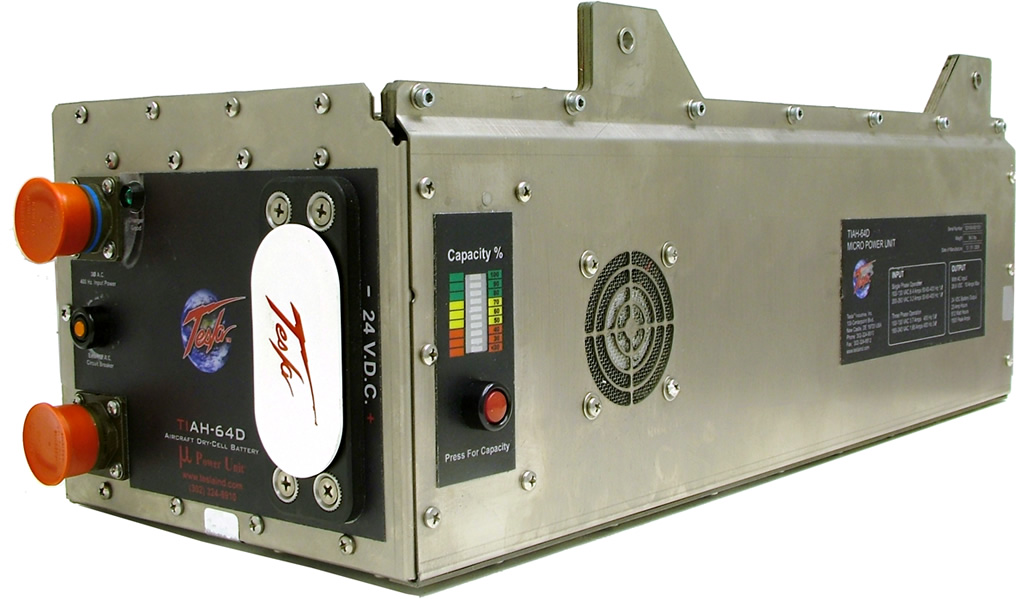

TIAH64D MPU-24

TIAH64D MPU-24
  • Designed to fit the Apache 64D Helicopter.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Non-hazardous, dry-cell technology with no risk of thermal runaway.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TIAH64D MPU-24 Specifications

DC Output: 10 amps continuous @ 28.5 Vdc (when plugged into ac power)
33 amp hours (797 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from either three phase 187-260 Vac / 45-450 Hz or single phase 100-260 Vac / 45-450 Hz
6.4 amps @ single phase 120 Vac
3.2 amps @ single phase 240 Vac
1.85 amps @ three phase 187-260 Vac 400 Hz 3Ø (has the ability to charge batteries off of aircraft power)
Recharging Rate: 143 minutes (from full discharge) @ 25°C
Dimensions: 19.06" L x 7.27" W x 7.35" H
484.12 mm x 184.66 mm x 186.7 mm
Weight: 53 lbs (24 kg)
Warranty: 3 Years
