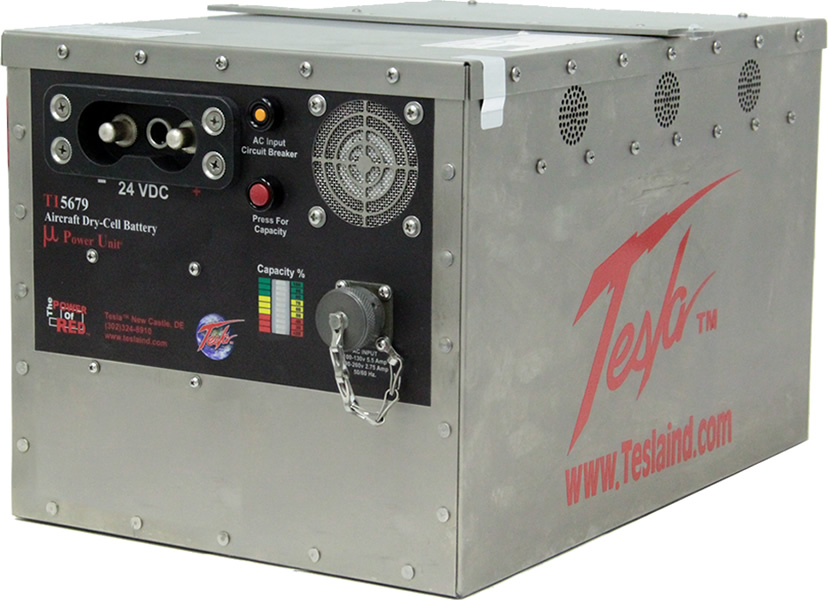

TI5679 MPU-24

TI5679 MPU-24
  • Designed to fit the Sikorsky S-61 Helicopter.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Non-hazardous, dry-cell technology with no risk of thermal runaway.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TI5679 MPU-24 Specifications

DC Output: 3000 peak starting amps
10 amps continuous @ 28.5 VDC (when plugged into ac power)
56 amp hours (1309 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 45-450 Hz
5.5 amps @ single phase 120 Vac
2.75 amps @ single phase 240 Vac
Recharging Rate: 281 minutes (from full discharge) @ 25°C
Dimensions: 15.57" L x 10.345" W x 9.5" H
395.5 mm x 262.6 mm x 241.3 mm
Weight: 97 lbs (44 kg)
Warranty: 3 Years
