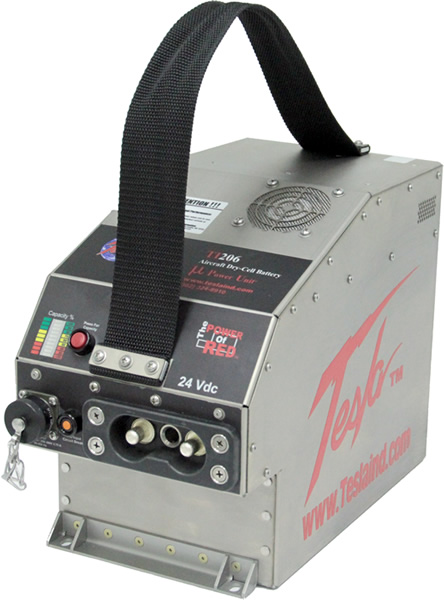

TI206 MPU-24

TI206 MPU-24
  • Designed to fit the Bell 206 Helicopter.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Non-hazardous, dry-cell technology with no risk of thermal runaway.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TI206 MPU-24 Specifications

DC Output: 1500 peak starting amps
10 amps continuous @ 28.5 Vdc (when plugged into ac power)
33 amp hours (797 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 45-450 Hz
5.5 amps @ single phase 120 Vac
2.75 amps @ single phase 240 Vac
Recharging Rate: 143 minutes (from full discharge) @ 25°C
Dimensions: 13.2" L x 7.6" W x 9.3" H
334.3 mm x 194.2 mm x 237.3 mm
Weight: 50.4 lbs (22.9 kg)
Warranty: 3 Years

Photo Gallery

TI206 MPU-24 TI206 MPU-24 TI206 MPU-24 TI206 MPU-24 TI206 MPU-24
