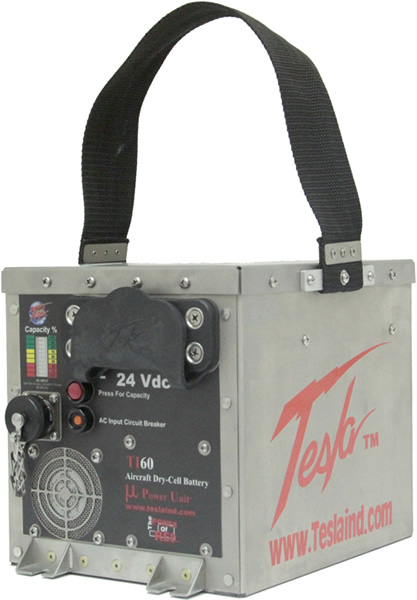

TI60 MPU-24

TI60 MPU-24
  • Designed as a replacement battery for the M134 Dillon Minigun.
  • Ideal for testing and troubleshooting avionics, and weapons systems.
  • More power than comparable NiCds.
  • Faster, more reliable starts.
  • Built in Capacity Meter/Recharge State Indicator.
  • Maintenance-free design.
  • Non-hazardous, dry-cell technology.
  • 5 to 7 year battery service life.
  • Plugs into ac power to recharge cells.
  • Back-charges off of dc aircraft bus.

TI60 MPU-24 Specifications

DC Output: 750 peak starting amps
10 amps continuous @ 28.5 Vdc (when plugged into ac power)
21.5 amp hours (541 watt hours) with ac power
11.5 amp hours (256 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 45-450 Hz
5.5 amps @ single phase 120 Vac
2.75 amps @ single phase 240 Vac
Recharging Rate: 74 minutes (from full discharge) @ 25°C
Dimensions: 9.25" L x 7.13" W x 7.5" H
234.95 mm x 181.1 mm x 190.5 mm
Weight: 27.75 lbs (12.59 kg)
Warranty: 3 Years
