TI10 Hybrid GPU

TTI10 Hybrid GPU

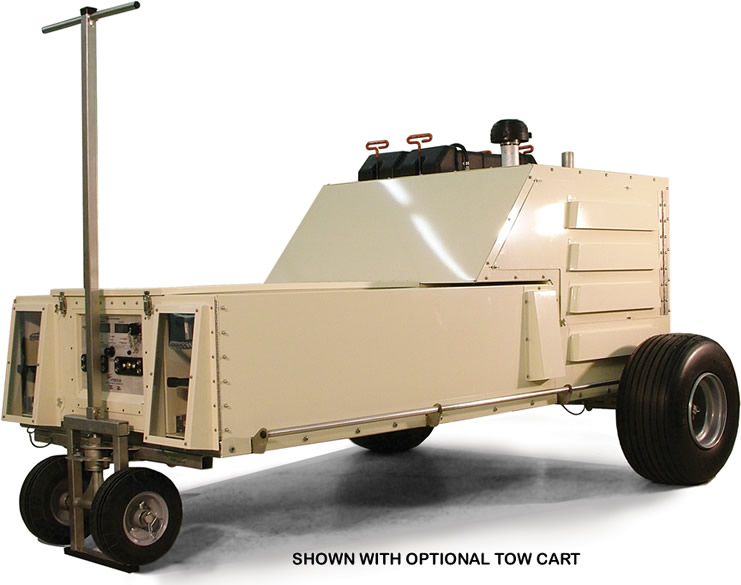

The Tesla™ TI10 Hybrid Ground Power Unit is the perfect combination of ultra-high current output and power generation. Water-tight gaskets and extensive weatherproofing (sand separator, exhaust fans, etc.) allow the TI10 Hybrid to withstand the harshest battlefield conditions and other extreme environments. With state-of-the-art electronic control and monitoring circuitry, the TI10 Hybrid provides safe and efficient power transfer of up to 6000 peak amps and 150 continuous amps of dc regulated power -- or 20 amps at 240 Vac.


TI10 Hybrid GPU Provides:

  • 10 horsepower, air-cooled, OHV engine
  • 5,000 watt generator
  • Safe and efficient power transfer of up to 6000 peak amps and
  • 150 continuous amps - plus 20 amps at 240 Vac
  • Heavy duty, tubular stainless steel frame
  • Isolated motor mounts to minimize noise and vibration
  • Two GFCI protected 120 Vac duplex outlets
  • Two 240 Vac twist lock outlets, One 120 Vac accessory outlet
  • Electric engine starter with 12 V / 10 Ah battery
  • Easy maintenance with NSN stocked fuel, oil and air filters
  • Ideal for hangars, FOBs, flight lines, motor pools, and deployments
  • Two removable TI3750 ground power units providing 28 Vdc @ 75 amps each or 28 Vdc @ 150 amps combined
  • Continuous ac output power: 5,000 watts
  • Weight: 720 lbs (327 kg)
  • 2-year warranty (3 years optional)
