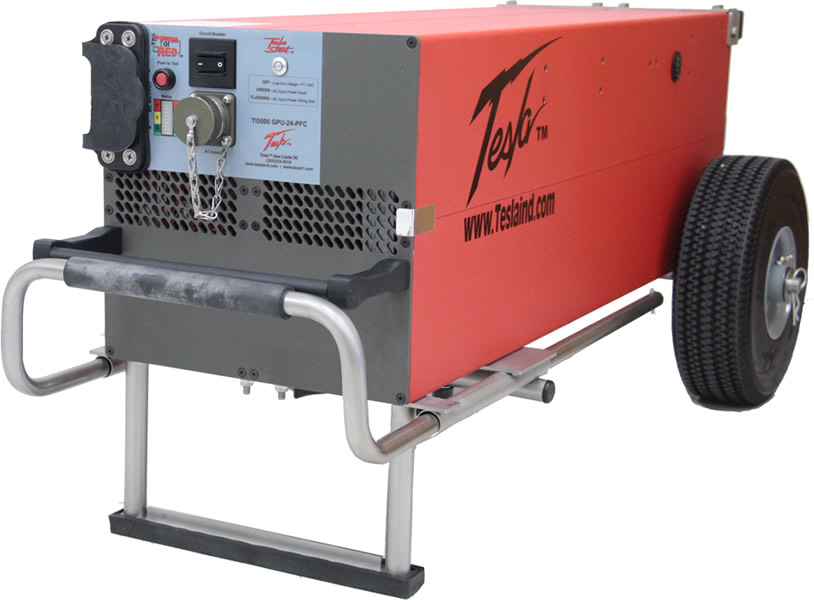

TI3500 GPU-24-PFC

TI3500 PFC Ground Power Unit
  • 70 continuous amps from a single phase outlet
  • 90 continuous amps for 9 hours with ac power
  • 0.999% power factor
  • <4% THD (Total Harmonic Distortion)
  • 3500 peak starting amps.
  • Ideal for small to medium size, fixed wing aircraft.
  • Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • System back-charges from the started vehicles’ engine in minutes.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (AC power required).
  • One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology.

TI3500 GPU-24-PFC Specifications

DC Output: 3500 peak starting amps
70 amps continuous @ 28.5 Vdc (when plugged into ac power)
162 amp hours (3962 watt hours) with ac power
92 amp hours (2048 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from single phase 105-260 Vac / 40 Hz - 450 Hz
19.8 amps @ 120 Vac
9.9 amps @ 240 Vac
(105-500 Vac optional)
Recharging Rate: 70 minutes (from full discharge) @ 25°C
Dimensions: 37.28" L x 19.25" W x 15.97" H
946.91 mm x 488.95 mm x 405.64 mm
Weight: 246.5 lbs (106.14 kg)
Warranty: 2 Years (3 Year Optional)
