TI5400 GPU-24

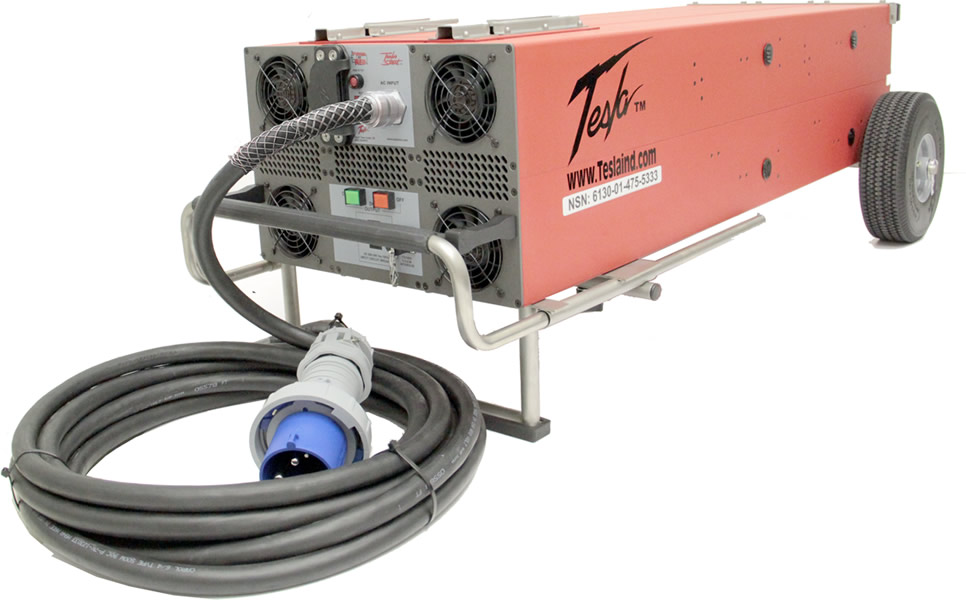

TI5400 Ground Power Unit

This unit provides 400 continuous amps and is still easily wheeled around your maintenance facility or hangar. With the TI5400 GPU-24, you can easily run multiple systems simultaneously, and start any vehicle/aircraft that uses a 24 volt system.

  • Designed for small to medium size, fixed wing aircraft.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI5400 GPU-24 Specifications

DC Output: 3000 peak starting amps
400 amps continuous @ 28.5 Vdc (when plugged into ac power)
446 amp hours (12424 watt hours) with three phase ac power
46 amp hours (1024 watt hours) of rechargeable battery power without three phase ac
AC Input: Operates and charges from three phase 208-240 Vac 50/60 Hz
42 amps @ 208 Vac
Requires 60 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 12 minutes (from full discharge) @ 25°C
Dimensions: 50.23" L x 24.5" W x 16.28" H
1275.80 mm x 622.30 mm x 413.50 mm
Weight: 251 lbs (113.85 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI5400 GPU-24 / NSN: 6130-01-452-2807
TIMV5400 GPU-24 / NSN: 6130-01-475-5333
