TI2500 GPU-24

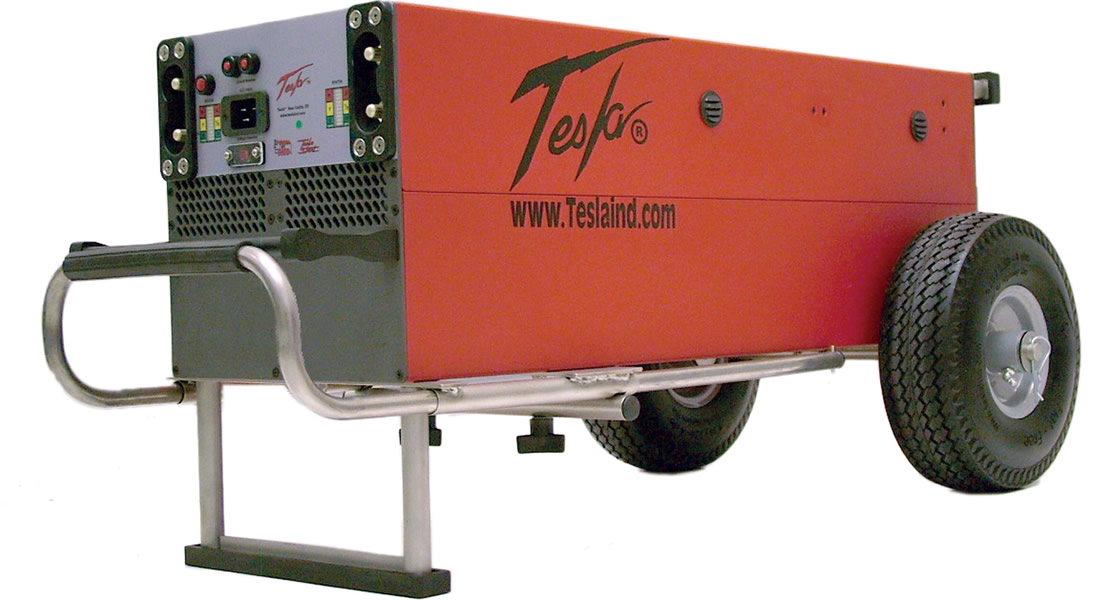

TI2500 Ground Power Unit

The TI2500 has dual outputs for series parallel starts. Two separate outputs draw their power from two independent 25 amp sources. These units can be paralleled to produce 50 continuous amps of power.

  • Currently being used with the Bell AH-1 Super Cobra.
  • Designed for 24/48V simultaneous starts.
  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI2500 GPU-24 Specifications

DC Output: 3000 peak starting amps or 6000 peak starting amps
25 amps of continuous dc power from each connector
(50 amps if used with optional Y-Cable Assembly TI2000-071)
71 amp hours (1736 watt hours) with ac power from each connector
46 amp hours (1024 watt hours) of rechargeable battery power without ac from each connector
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60Hz
20 amps @ 120 Vac
10 amps @ 240 Vac
Recharging Rate: 115 minutes (from full discharge) @ 25°C
Dimensions: 37.28" L x 19.25" W x 15.97" H
946.91 mm x 488.95 mm x 405.64 mm
Weight: 235 lbs (106.6 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI2500 GPU-24 / NSN: 6130-01-452-2777
TIMV2500 GPU-24 / NSN: 6130-01-475-5319
