Tesla™ Industries, Inc.
Power Anytime, Anywhere

TI4400 GPU-24

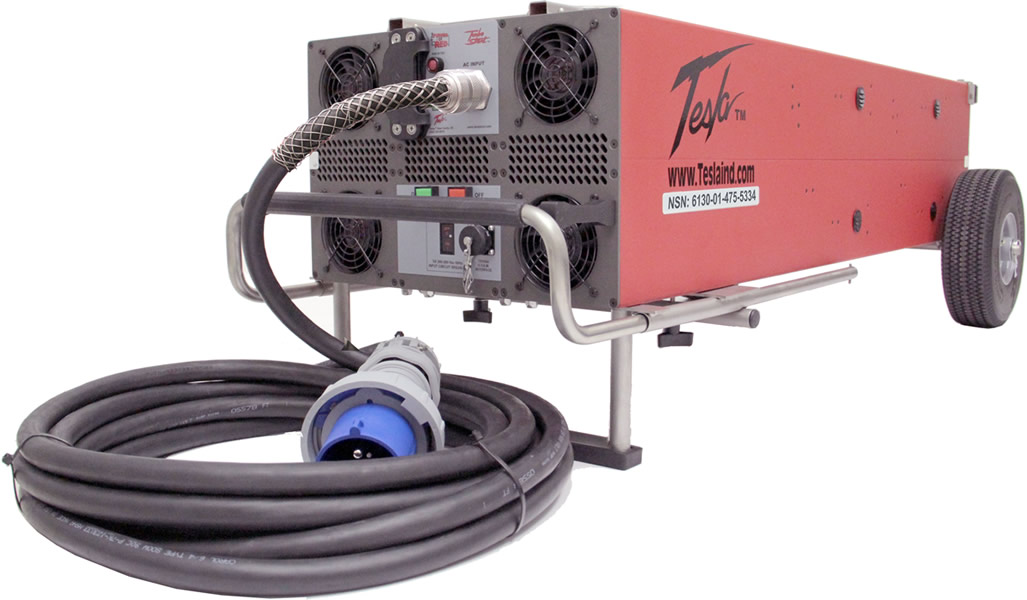

TI4400 Ground Power Unit
  • Designed for small to medium size, fixed wing aircraft.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI4400 GPU-24 Specifications

DC Output: 1500 peak starting amps
400 amps continuous @ 28.5 Vdc (when plugged into ac power)
423 amp hours (11912 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from three phase 200-260 Vac 50/60 Hz
42 amps @ 208 Vac
Requires 60 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 8 minutes (from full discharge) @ 25°C
Dimensions: 50.23" L x 24.5" W x 16.28" H
1275.80 mm x 622.30 mm x 413.50 mm
Weight: 205 lbs (93 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI4400 GPU-24 / NSN: 6130-01-475-5310
TIMV4400 GPU-24 / NSN: 6130-01-475-5334

Photo Gallery

TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit TI4400 Ground Power Unit
