Tesla™ Industries, Inc.
Power Anytime, Anywhere

TI1590 GPU-12

TI1590 12 Volt Ground Power Unit
  • Designed for use with 12 Volt systems.
  • System back-charges from the started vehicles’ engine in minutes.
  • DC output on/off controls to prevent arcing.
  • Safe, easy, maintenance-free operation.
  • 5 to 7-year service life.
  • One person can maneuver and operate the unit.
  • Safe for flight, non-hazardous, dry-cell technology.
  • The “Push to Test” feature provides instant state of charge of Unit’s Battery Cells.

TI1590 GPU-12 Specifications

DC Output: 3500 peak starting amps
40 amps continuous @ 14.25 Vdc (when plugged into ac power)
132 amp hours (2618 watt hours) with ac power
92 amp hours (2048 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from single phase 100-260 Vac 50/60 Hz
8.5 amps @ 120 Vac
4.25 amps @ 240 Vac
Recharging Rate: 150 minutes (from full discharge) @ 25°C
Dimensions: 36.38" L x 14.25" W x 15.64" H
924.10 mm x 362.0 mm x 397.20 mm
Weight: 124 lbs (56.24 kg)
Warranty: 2 Years (3 Year Optional)

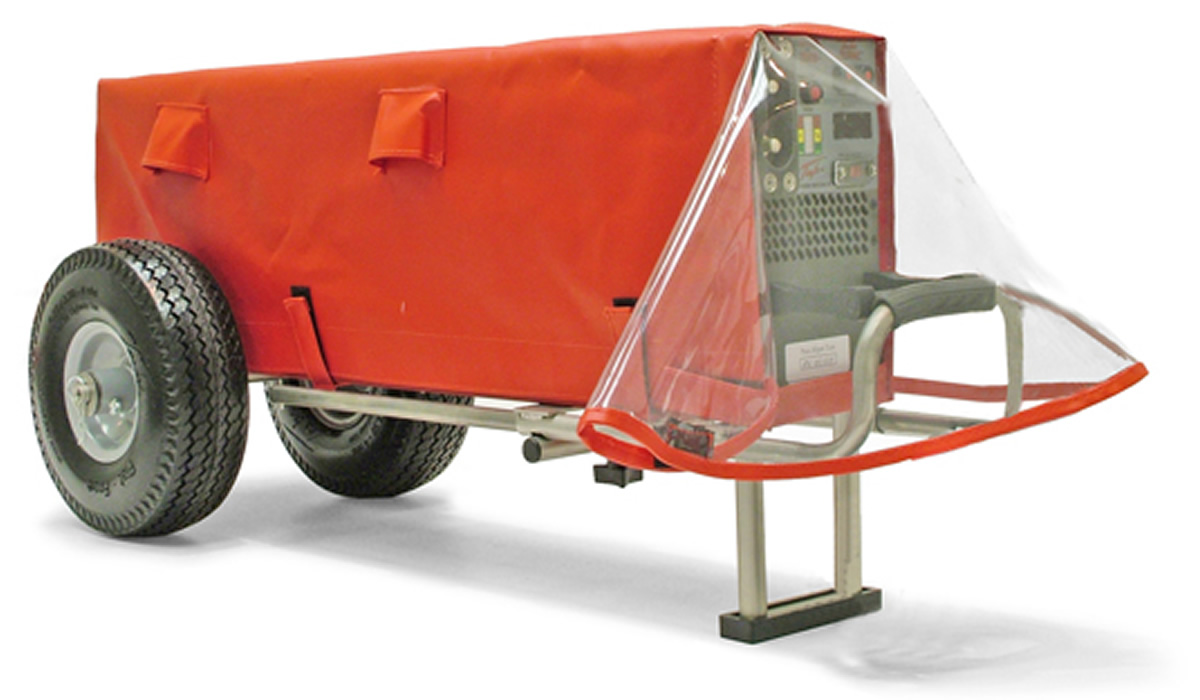

Photo Gallery

TI1590 12 Volt Ground Power Unit TI1590 12 Volt Ground Power Unit TI1590 12 Volt Ground Power Unit TI1590 12 Volt Ground Power Unit TI1590 12 Volt Ground Power Unit TI1590 12 Volt Ground Power Unit
