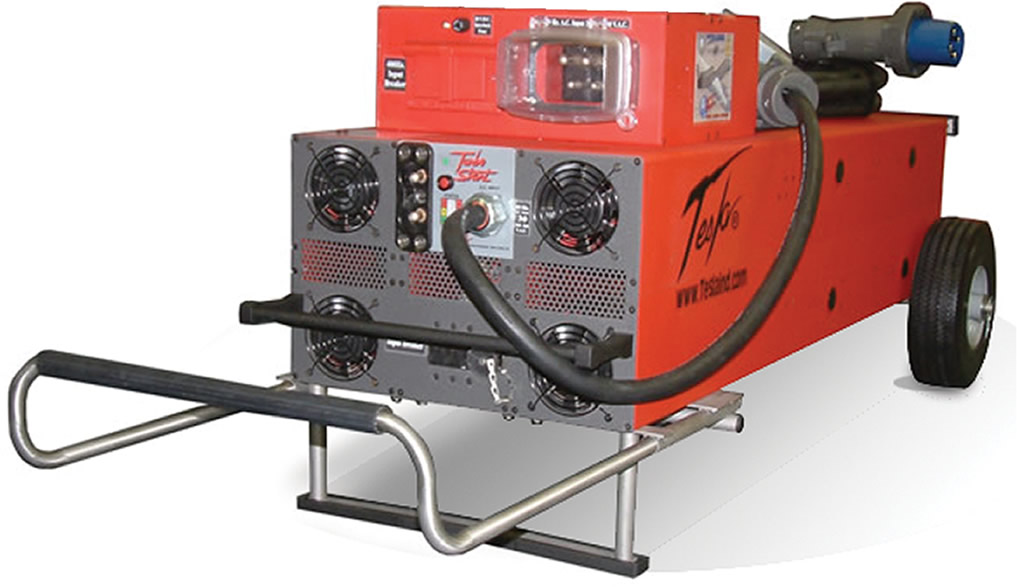

TI5400 400Hz GPU-24 GHMD

TI5400 400Hz GPU-24 GHMD
  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI5400 400Hz GPU-24 GHMD Specifications

DC Output: 3000 peak starting amps
400 amps continuous @ 28.5 Vdc (when plugged into ac power)
446 amp hours (12424 watt hours) with three phase ac power
46 amp hours (1024 watt hours) of rechargeable battery power without three phase ac
AC Input: Operates and charges from either three phase 187-260 Vac 50/60 Hz or three phase Wye 115/200 Vac 400 Hz
42 amps @ 208 Vac 50/60 Hz
45 amps @ 200 Vac 400 Hz
Requires 60 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 12 minutes (from full discharge) @ 25°C
Dimensions: 50.23" L x 24.50" W x 21.25" H
1275.80 mm x 622.30 mm x 539.75 mm
Weight: 267 lbs (121.11 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Code: TI5400 400Hz GPU-24 GHMD / NSN: 6130-01-572-4832
