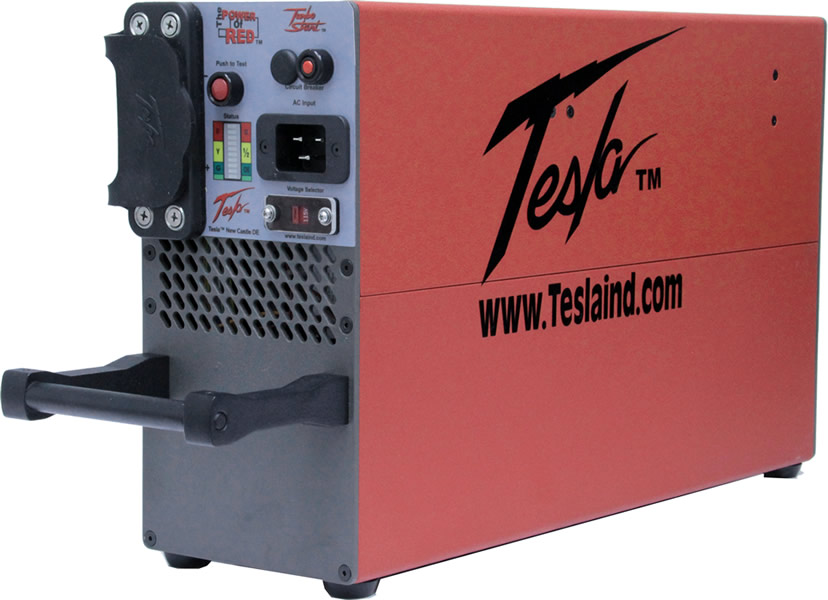

TI1000 GPU-24

TI1000 Ground Power Unit
  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Light weight, compact, and easily stored.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • Non-hazardous, dry-cell technology that can be trans- ported aboard an aircraft.
  • GPU will back-charge off a vehicle charging system (no ac required).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).

TI1000 GPU-24 Specifications

DC Output: 1500 Peak Starting Amps
25 amps continuous @ 28.5 Vdc (plugged into ac power)
48 amp hours (1224 watts) with ac power
23 amp hours (512 watts) of rechargeable power without ac power
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60Hz
10 amps @ 120 Vac
5 amps @ 240 Vac
Recharging Rate: 60 minutes (from full discharge) @ 25°C
Dimensions: 20.61" L x 5.2" W x 10.56" H
523.49 mm x 132.08 mm x 268.25 mm
Weight: 57 lbs (28.85 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI1000 GPU-24 / NSN: 6130-01-418-5230
TIMV1000 GPU-24 / NSN: 6130-01-475-5313
TI1000 GPU-24 UAV / NSN: 6130-01-455-5172
