TI3000 GPU-24

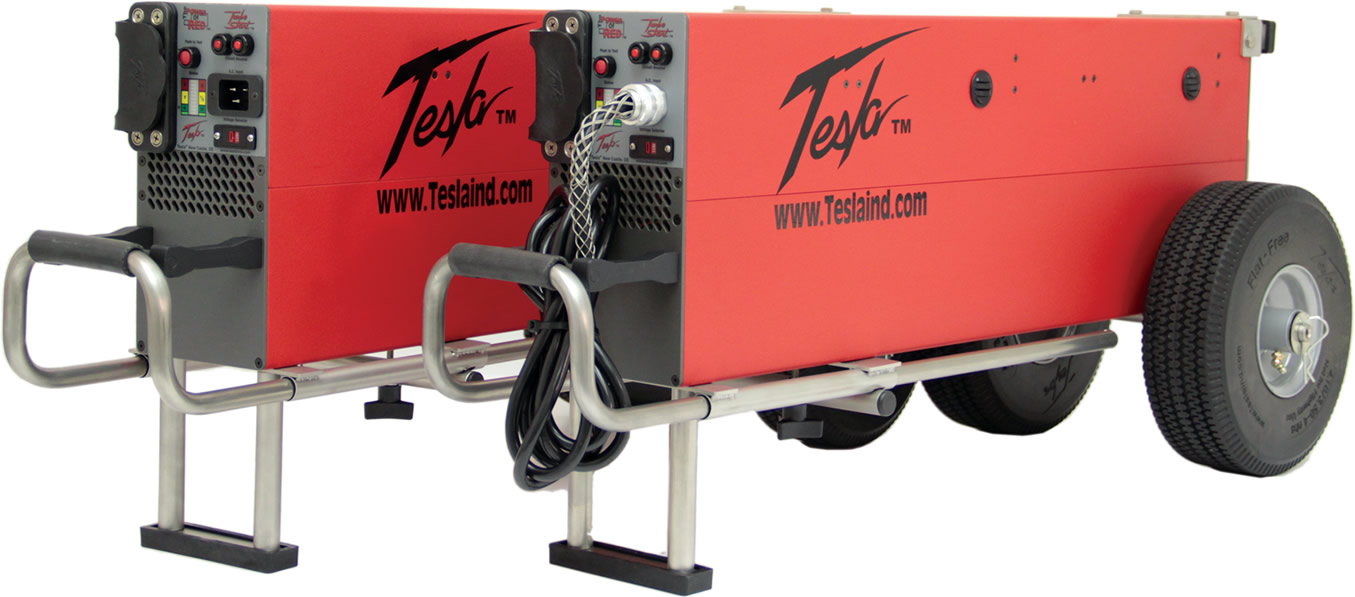

TI3000 Ground Power Unit

The TI3000 is the workhorse of Tesla™ Turbo Start™ products. It easily wheels by hand through hangars and motor pools and provides 3000 amps of power - eliminating the need to slave start from other vehicles or use multiple personnel.

  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required)..

TI3000 GPU-24 Specifications

DC Output: 3000 peak starting amps
50 amps continuous @ 28.5 Vdc (when plugged into ac power)
96 amp hours (2449 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60 Hz
20 amps @ 120 Vac
10 amps @ 240 Vac
Recharging Rate: 60 minutes (from full discharge) @ 25°C
Dimensions: 36.40" L x 14.25" W x 15.64" H
924.40 mm x 362 mm x 397.20 mm
Weight: 127 lbs (57.60 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI3000 GPU-24 / NSN: 6130-01-440-2712
TIMV3000 GPU-24 / NSN: 6130-01-475-5321
