TI1550 12-24-UAV GPU

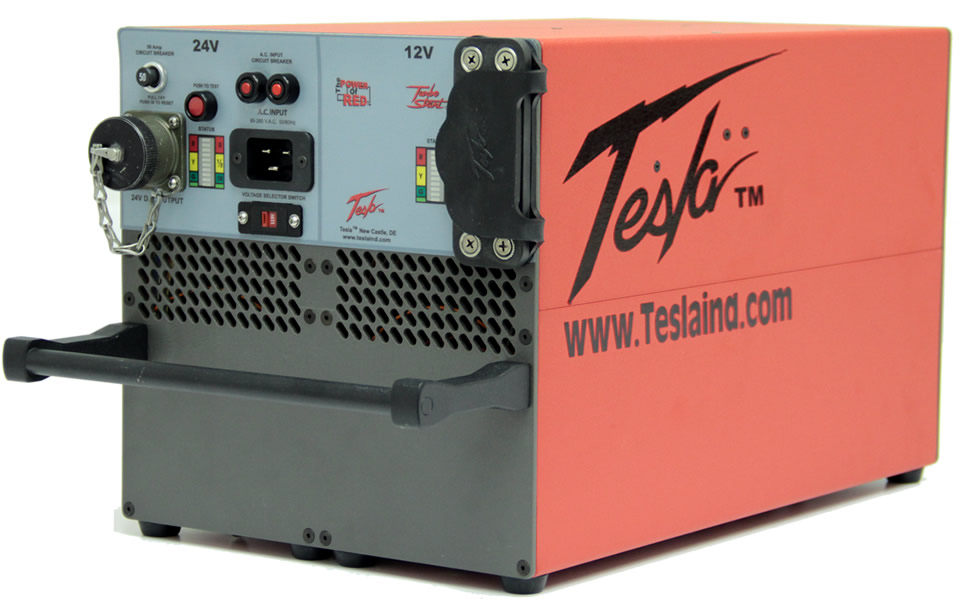

TI1550 12-24-UAV Ground Power Unit

The TI1550-12-24-UAV GPU has been designed as a stand-alone source of dc power for ground support systems and maintenance operations. Using a single 120 Vac power source, it will provide both 12 Vdc and 24 Vdc. For starting UAV aircraft, the 12 Vdc output can deliver up to 1500 peak amps.

  • Designed for use with UAVs.
  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).

TI1550 12-24-UAV GPU Specifications

24 Vdc Output 50 peak amps (circuit breaker limited)
25 amps continuous @ 28.5 Vdc (when plugged into ac power)
48 amp hours (1224 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
12 Vdc Output 1500 peak starting amps
20 amps continuous @ 14.25 Vdc (when plugged into ac power)
43 amp hours (797 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac 50/60 Hz
14.70 amps @ 120 Vac
7.35 amps @ 240 Vac
Recharging Rate: 24 Vdc: 60 minutes (from full discharge) @ 25°C
12 Vdc: 74 minutes (from full discharge) @ 25°C
Dimensions: 20.61" L x 10.40" W x 10.56" H
523.5 mm x 264.2 mm x 268.2 mm
Weight: 89 lbs (40.4 kg)
Warranty: 2 Years (3 Year Optional)
