TI1530 GPU-12

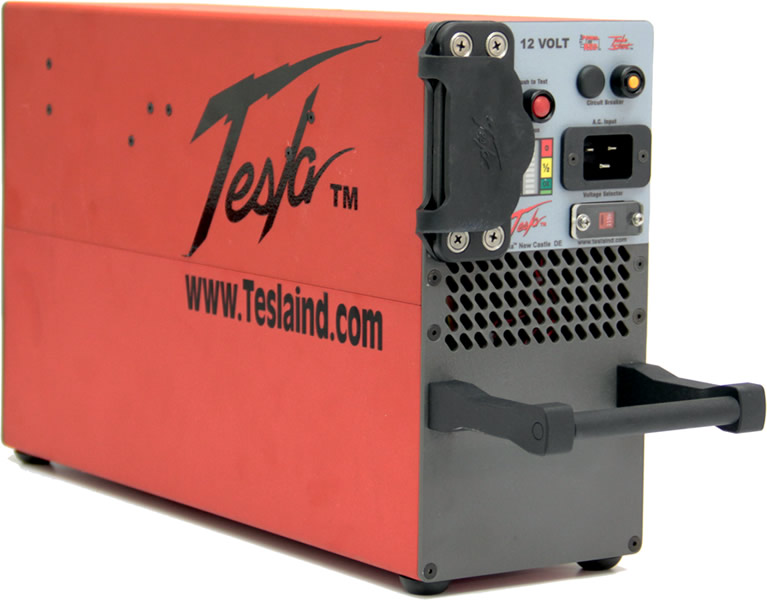

TI1530 Ground Power Unit
  • Designed for use with 12 Volt systems.
  • System back-charges from the started vehicles’ engine in minutes.
  • Operates with a circuit breaker, therefore eliminating the need to replace blown fuses.
  • Safe, easy, maintenance-free operation.
  • 5 to 7-year service life.
  • One person can maneuver and operate the unit.
  • Safe for flight, non-hazardous, dry-cell technology.
  • The “Push to Test” feature provides instant state of charge of Unit’s Battery Cells.

TI1500 GPU-12 Specifications

DC Output: 3000 peak starting amps
20 amps continuous @ 14.25 Vdc (when plugged into ac power)
66 amp hours (1309 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from single phase 100-260 Vac 50/60 Hz
5.5 amps @ 120 Vac
2.75 amps @ 240 Vac
Recharging Rate: 143 minutes (from full discharge) @ 25°C
Dimensions: 20.61" L x 5.2" W x 10.56" H
523.49 mm x 132.08 mm x 268.25 mm
Weight: 55.6 lbs (25.21 kg)
Warranty: 2 Years (3 Year Optional)
