TI4200 GPU-24

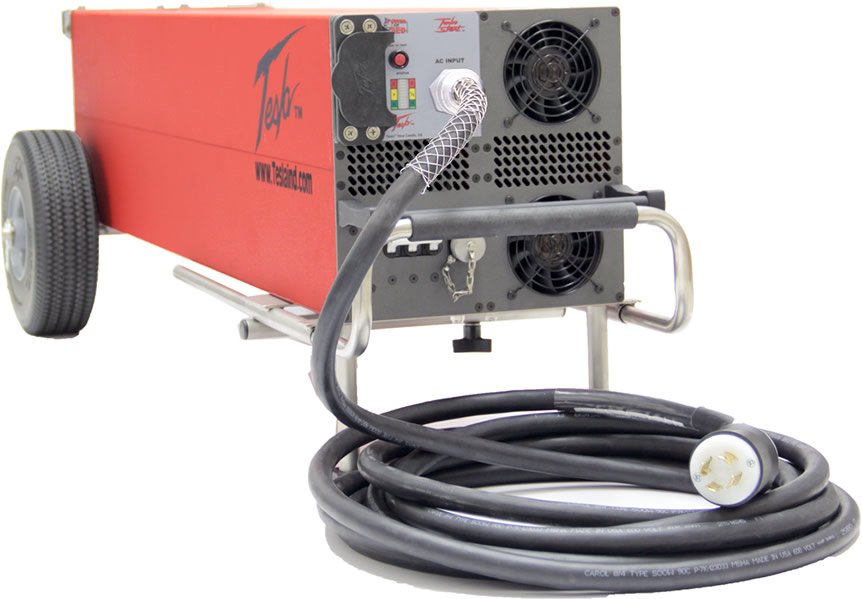

TI4200 Ground Power Unit
  • Designed for small to medium size, fixed wing aircraft.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI4200 GPU-24 Specifications

DC Output: 1500 peak starting amps
200 amps continuous @ 28.5 Vdc (when plugged into ac power)
223 amp hours (6212 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from three phase 200-260 Vac 50/60 Hz
20 Amps @ 208 Vac
Requires 30 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 12 minutes (from full discharge) @ 25°C
Dimensions: 50.0" L x 19.25" W x 16.28" H
1271.40 mm x 489.0 mm x 413.50 mm
Weight: 148 lbs (67.13 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI4200 GPU-24 / NSN: 6130-01-452-2804
TIMV4200 GPU-24 / NSN: 6130-01-475-5331
